Metal Zipper Production Process
Nylon Zipper Production Process
Invisible Zipper Production Process
Plastic Zipper Production Process

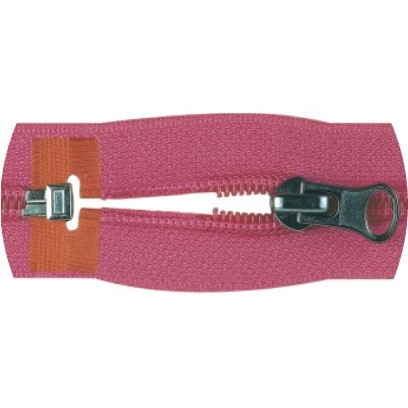

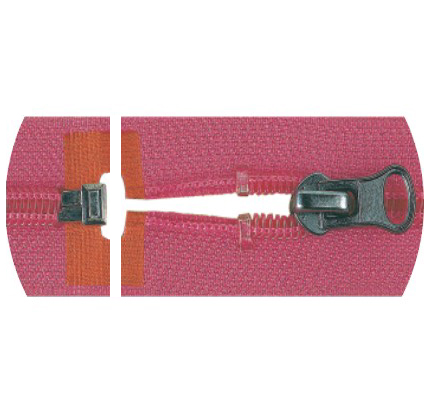

OPEN END PRODUCTION PROCESS (U TOP STOP)
  • Process number：
    1
  • Power：
    0.90KW
  • Model：
    ZY-102N-E
  • Voltage：
    380V
  • Machinery name：
    Full-automatic Nylon Zipper Two-way Gapping and Stripping Machine
  • Machine size (m): (Length × width × height)
    1.90X0.51X1.85
  • Average yield：
    3800pcs/18CM/H; 2600pcs/60CM/H
  • Net weight：
    250KG
  • Process number：
    2
  • Power：
    4.40KW
  • Model：

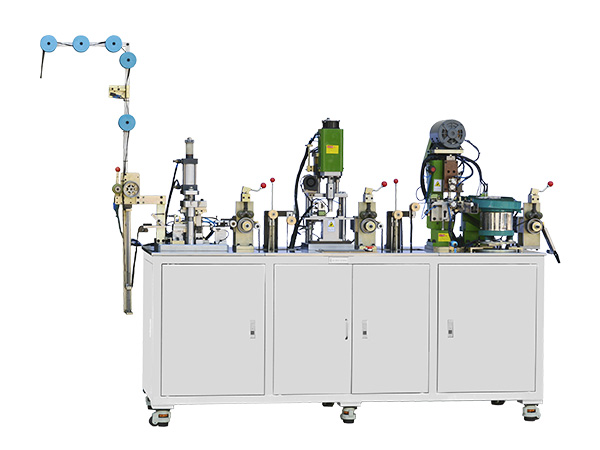

    ZY-801N
  • Voltage：
    380V
  • Machinery name：
    Auto Nylon Zipper Film Sealing, Ultrasonic Punching and Pin-Box Pressing Machine
  • Machine size (m): (Length × width × height)
    2.38X0.70X1.88
  • Average yield：
    1000pcs/60cm/H
  • Net weight：
    670KG
  • Process number：
    3
  • Power：
    1.80KW
  • Model：

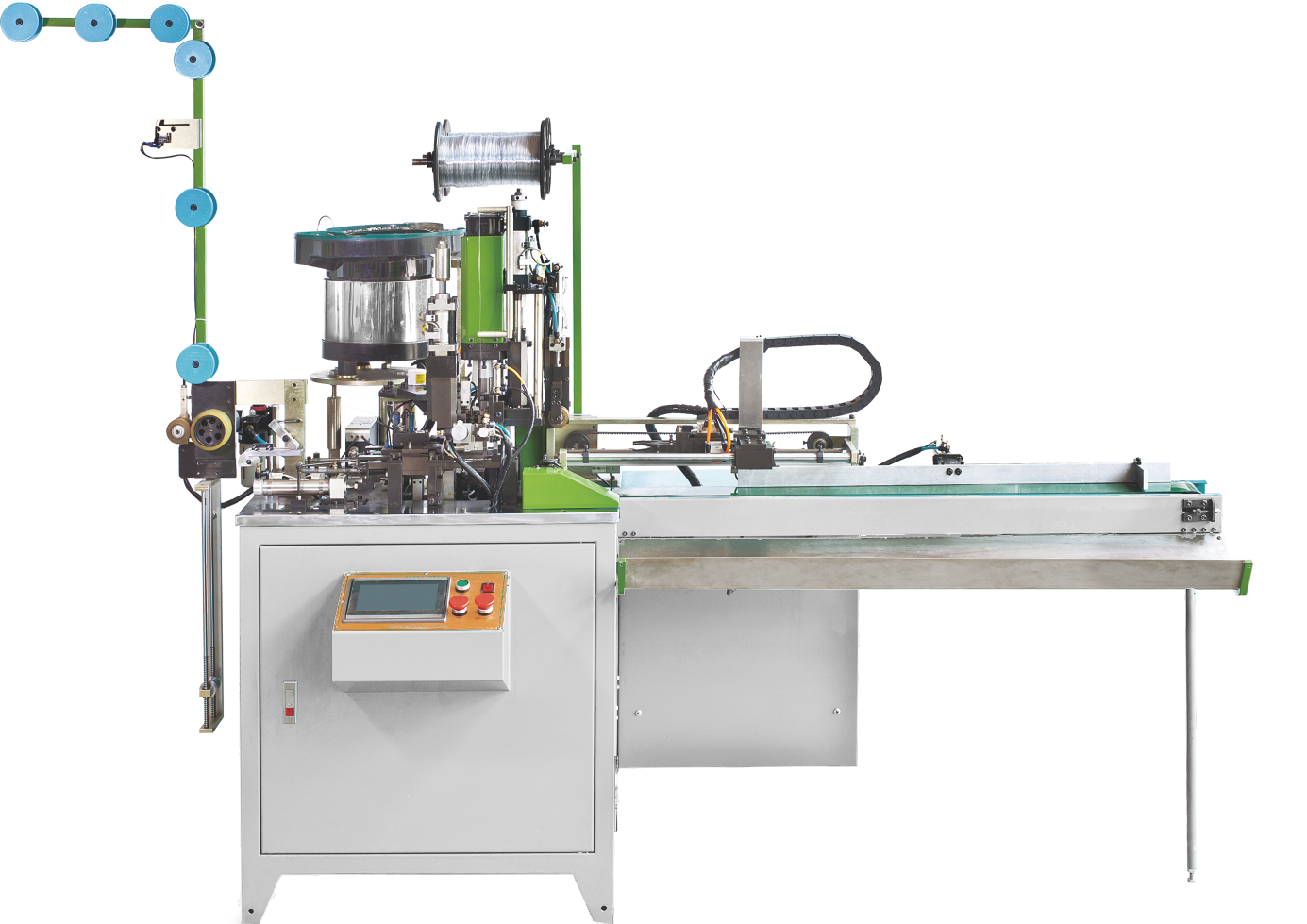

    ZY-802N-B
  • Voltage：
    220V
  • Machinery name：
    Auto Open-end Nylon Zipper Slider mounting, Ultrasonic U Top Stop Welding and Cutting Machine
  • Machine size (m): (Length × width × height)
    2.60X1.00X1.85
  • Average yield：
    600pcs/60cm/H
  • Net weight：
    358KG
